A TensorRT cancel button needs four honest build states

A TensorRT engine build can look like one long blocking call to the application around it. Once that call starts, a user may see only a spinner even though the build is running, responding to a cancellation request, fully cancelled, or failed. On July 22, NVIDIA published new guidance for exposing those states with IProgressMonitor. The publication is a new tutorial, not a new API launch; NVIDIA says the interface has been present in NvInfer.h for several releases.

The practical issue is whether a terminal, IDE, CI job, service, or agent-controlled tool tells the truth about work that continues after the happy path ends. This article explains what TensorRT reports during an engine build, where cooperative cancellation can take effect, and which state must remain in the host application. A team that builds TensorRT engines can then decide whether a progress monitor is useful or unnecessary for its current path.

An engine build contains several operations that one spinner can hide

A TensorRT engine is the optimized representation that TensorRT produces from a network for execution on target hardware. Building it can include tactic selection, timing work, and kernel optimization. NVIDIA says a build can take seconds to many minutes, with longer waits possible for large strongly typed models, deep tactic searches, or a cold timing cache on a new GPU SKU. That range is NVIDIA's description, not an independent benchmark.

Without a monitor, the host application sees the builder call begin and eventually return. It cannot use that boundary alone to tell a user which optimizer phase is active or whether work is advancing. A process can still write logs, and an operator can still inspect system activity, but neither gives the application a structured view of the build itself.

That distinction matters when engine creation sits inside a product workflow. An offline build run directly by an engineer can tolerate sparse output. A remotely triggered build needs enough state for the caller to decide whether to wait, request cancellation, or investigate a failure. This build-time problem also sits before the serving choices covered in our guide to inference deployment decisions: endpoint and rollback planning do not explain what a compiler-like build is doing while the caller waits.

IProgressMonitor exposes a nested callback sequence

IProgressMonitor is an interface that the application implements and attaches to IBuilderConfig. In Python, the assignment uses config.progress_monitor; C++ integrations use setProgressMonitor(...). TensorRT then calls the monitor while it builds and optimizes the engine.

The Python API documentation defines three callbacks. phase_start announces that a phase has begun and provides its parent and expected step count. step_complete reports a completed step and returns a Boolean that tells TensorRT whether to continue. phase_finish announces that TensorRT is leaving the phase.

A phase can contain another phase, so the callbacks describe a hierarchy rather than one flat percentage. NVIDIA's tutorial illustrates names such as Building Engine, Tactic Selection, Timing Cache Warmup, and Kernel Autotune. A UI can use the parent relationship to render the current branch and preserve the context around a nested operation.

Applications should treat those human-readable names and their hierarchy as display information, not a stable protocol. NVIDIA's API documentation warns that phase names and the hierarchy may change between TensorRT versions. Code that makes business logic depend on an exact label such as “Tactic Selection” may break even though the callback interface continues to work.

The callbacks also need to remain balanced in the application's view when a build stops early. After a cancellation request, TensorRT unwinds active phases and can call phase_finish before every expected step has completed. A renderer that equates phase_finish with 100 percent completion would report the wrong outcome.

Cancellation is cooperative, so “cancelling” is a real state

The application requests cancellation by returning False from step_complete. That Boolean is the cancellation boundary defined by the interface. A typical integration stores a cancellation request when the user presses a button or when an external service accepts a stop command. The next step_complete call reads that state, records that it delivered the request to TensorRT, and returns False.

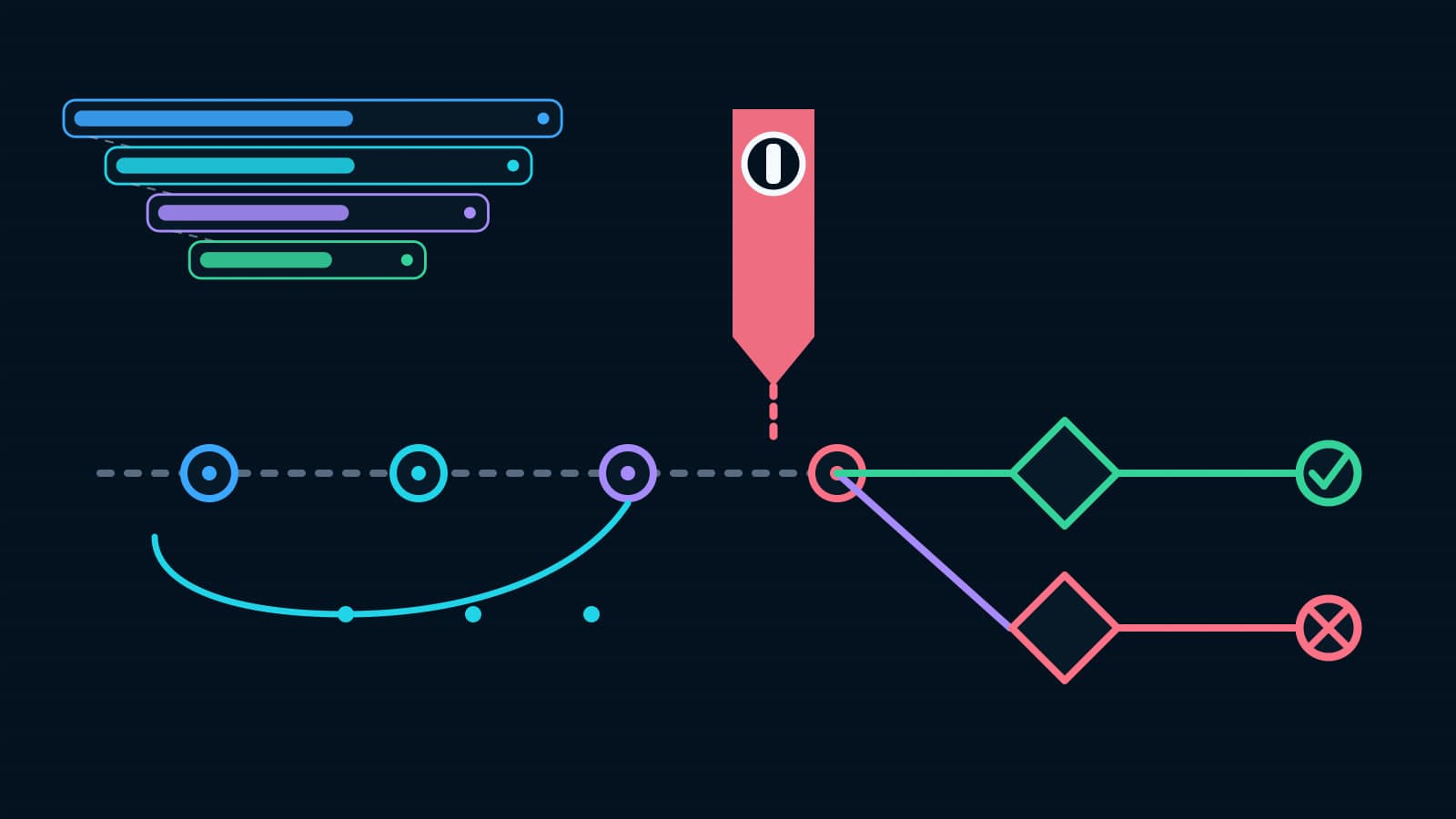

The request does not interrupt TensorRT at an arbitrary instruction. NVIDIA says cancellation normally takes effect at the next step boundary, and a long tactic-search step can delay the next callback. During that interval, the honest user-facing state is cancelling, not cancelled. The application should move to cancelled only after the builder has exited and the integration has confirmed that the exit followed its cancellation request.

This makes cancellation latency part of product behavior. The interface supplies a clean stop path, but it does not promise how quickly every workload will reach another boundary. A team evaluating the interaction should observe representative builds and decide whether their callback intervals produce an acceptable wait. NVIDIA's guidance does not provide a cancellation-latency distribution across models, GPU SKUs, tactic searches, or TensorRT versions.

The four states need explicit meanings in the host application:

• running: the builder is active and no accepted cancellation request is pending.
• cancelling: the application has accepted a cancellation request, but TensorRT has not finished unwinding.
• cancelled: the build has ended after the monitor recorded returning False.
• failed: the builder ended without producing an engine, and the monitor did not record returning False in response to an accepted cancellation request.

Python adds an important ambiguity. NVIDIA's tutorial says build_serialized_network() returns None when cancellation occurs, but None by itself does not prove cancellation. The integration must keep its own request and terminal-state record so it can separate an expected cancelled result from another build failure. A completed progress display also says nothing about engine validity or model behavior; those belong to separate checks, including the output-quality monitoring applied after infrastructure work succeeds.

Thread safety and object lifetime define the implementation boundary

TensorRT can call the monitor from multiple internal threads, so NVIDIA requires the application's implementation to be thread-safe. Its tutorial uses a lock in Python; the C++ example uses a mutex and an atomic cancellation flag. Shared phase state, counters, output buffers, and the cancellation request cannot rely on callbacks arriving through one thread in a convenient order.

The monitor must also outlive the TensorRT objects that use it. Attaching a short-lived monitor to the builder configuration and releasing it while a build can still issue callbacks creates a lifetime error outside the interface's progress logic. The owner of the builder or build job should therefore own the monitor for at least the same active period.

These requirements argue for keeping callback work small. The monitor can update protected state or enqueue a structured event, while a separate renderer or transport publishes the update. That separation is a BaristaLabs implementation recommendation rather than an NVIDIA performance claim: it reduces the UI, network, or formatting work performed inside callbacks that TensorRT controls.

Cancellation arriving from another thread needs the same discipline. The request handler should identify the correct build, set a thread-safe flag, and return a cancelling status. step_complete can then read that flag and return False. For a remote endpoint, the surrounding service still owns authentication, build isolation, and durable final status; IProgressMonitor does not provide those application controls.

Terminal output and structured transport need different designs

NVIDIA maintains a Python simple_progress_monitor sample that renders nested progress in a terminal. Its sample documentation warns against redirecting the ANSI progress-bar output to a file or pipe. Terminal escape sequences are useful for repainting an interactive display, but they are poor records for CI logs, HTTP clients, or later diagnosis.

A structured transport should publish the callback meaning instead of forwarding terminal control codes. Depending on the host, that could be an IDE notification, server-sent event, or structured tool-call update, all surfaces NVIDIA mentions in the tutorial. The application can serialize phase start, step progress, phase finish, and the separate cancellation state into the format that its client understands.

The transport should preserve the semantic limits of the source event. A phase finishing during unwind must not become “phase completed successfully.” A cancellation request must not become “build cancelled” before the builder returns. Human-readable phase names can appear in the interface, but consumers should not depend on those names remaining identical after a TensorRT upgrade.

This is where product capability and host behavior separate. TensorRT can report progress and accept a cooperative stop request. Only the host application can expose running, cancelling, cancelled, and failed as distinct states, retain the evidence needed to classify a None return, and give the user a final result after the progress display disappears.

Implement the monitor when another system depends on the build

Implement IProgressMonitor when engine builds are user-triggered or remotely triggered, when they run inside CI, an IDE, a service, or an agent-controlled path, and when a silent wait or hard process kill leaves the caller unsure of the outcome. The work includes more than drawing a progress bar. The integration needs a thread-safe monitor with the right lifetime, explicit cancellation state, honest terminal-state classification, and a transport suited to its client.

Keep the simpler path when builds are rare, offline, directly supervised, and already have adequate logs plus an acceptable kill-and-retry procedure. A monitor adds code and state that must be tested across TensorRT upgrades. The available sources establish the callback mechanics, but they do not establish faster builds, lower costs, better uptime, fewer incidents, or broad adoption.

Delay remote cancellation if the service cannot authenticate the requester, direct the request to one specific build, preserve the final status, or distinguish cancellation from failure. In that case, terminal-only visibility may still help a local operator, while a remote stop endpoint would promise more control than the application can safely provide.

The immediate decision is concrete: identify every place your software calls build_serialized_network(), then classify it as an offline operator task or a user-visible system dependency. Leave the first category alone unless current logs are inadequate. For the second, implement the callback path and test a cancellation request during a representative long step, checking that the interface moves through cancelling before it reports cancelled or failed.
